Hard Chrome Plated Bars
Usage
Pneumatic / Hydraulic Cylinder shaft, column, plastic iniunction & blow moulding machine, fitness equipment auto machine and precision shaft.
| Dia mm Ø |
Dia mm Ø |
Dia mm Ø |
Dia mm Ø |
Dia mm Ø |
Dia mm Ø |
Dia mm Ø |
Dia mm Ø |
Dia mm Ø |
| 8 |
15.875/5/8" |
22.22/7/8" |
31.75/11/4" |
40 |
57.15/21/4" |
75 |
100 |
150 |
| 10 |
16 |
25 |
32 |
44.45/13/4" |
60 |
76.2/3" |
101.6/4" |
160 |
| 12 |
18 |
25.4/1" |
35 |
45 |
63 |
80 |
120 |
|
| 12.7/1/2" |
19.05/3/4" |
28 |
36 |
50 |
63.5/21/2" |
85 |
125 |
180 |
| 14 |
20 |
28.56/11/8" |
38 |
50.8/2" |
65 |
90 |
130 |
|
| 15 |
22 |
30 |
38.1/11/2" |
56 |
70 |
95 |
140 |
190 |
Remark :
- Material : EN-8 D/ C-45 (other material like En.9/ En.1 9/EA.-24 etc. can be used).
- Std.size : 8mm to 200mm above 200mm can be orderd.
- Std. Length : cut to customer length up to 6000mm.
- Standard Specifications of Hard Chrome Plated Bars of Viraj Engg. Co.
- Raw material – EN-8D/CK-45
- Hardness- toughed to 240 to 270 BHN (Specially for Tie Bars/Piston Rod)
- Chrome plating thickness 35 to 50 microns (one side) and 70 to 100 microns (on Dia)
- Chrome surface hardness 950 to 1100 HV
- Chrome surface finish less than Ra -0.15
- Straightness - 0.1mm per meter max
- Tolerance as per your requirement (g6,f7,h8)
Note :
test certificates can be provided along with material as under
- Raw material chemical (NABL LAB)
- Raw material Physical (NABL LAB)
- Raw material Ultrasonic (LEVEL -2) report
- Hardness TC
- Plating thickness
Induction Hardening Chrome Plated Bar / L.M Shaft / Side Rail
Usage

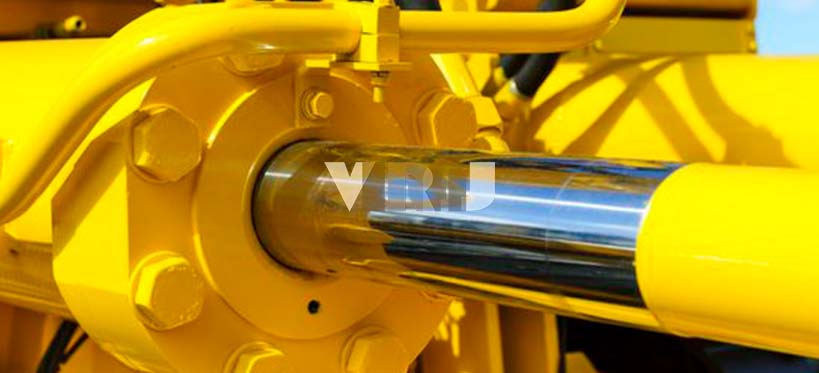

Shaft for L.M. Bearing / Piston Rod For Earth moving equipment shaft for fitness equipment Guide Piller, Side Rail.
| Dia mm |
Hardening Depth |
Dia mm |
Hardening Depth |
Dia mm |
Hardening Depth |
Dia mm |
Hardening Depth |
| 10 |
l mm |
18 |
2 mm |
28 |
2 mm |
50 |
2.5 mm |
| 12 |
l mm |
19.05 mm |
2 mm |
30 |
2.5 mm |
60 |
3.mm |
| 15 |
2 mm |
20 |
2 mm |
31.75 |
2.5 mm |
65 |
3.mm |
| 16 |
2 mm |
22 |
2 mm |
35 |
2.5 mm |
70 |
3. mm |
|
|
25 |
2 mm |
38 |
2.5 mm |
75 |
3. mm |
|
|
25.4 |
2 mm |
40 |
2.5 mm |
80 |
3.mm |
|
|
|
|
45 |
2.5 mm |
100 |
3.mm |
Remark :
- Material : C-45 / EN-9 / EN-19/ 100 mm can also be made as per customer requirement.
- Size above 100 mm can also be made as per customer requirement.
- Standard specifications of Induction Harden Rods of Viraj Engg.Co.
- Raw material – EN-8D/CK-4
- Induction Harden to 58 to 60 HRC
- Chrome plating thickness 35 to 50 microns (one side) and 70 to 100 microns (on Dia)
- Chrome surface Hardness 950-1050 HV.
- Surface finish less than Ra 0.15
- Straightness 0.01 mm per meter max
- Tolerance as per your requirement (g6,h7,h8)
Note :
test certificates can be provided along with material as under
- Raw material chemical (NABL LAB)
- Raw material Physical (NABL LAB)
- Raw material Ultrasonic (LEVEL - 2) report
- Hardness TC
- Plating thickness
High Precision Metering Bar
Metering Rod for paper coating plant :
| Dia mm |
Dia mm |
| 10m |
20m |
| 12m |
22m |
| 15.8m |
25m |
| 16m |
2 |
Remark :
- Surface Roughness : 0.1 RA (super finish )
- Material : High wear resistance carbon steel
- Standard Size : 10mm to 25mm
- Standard Length : Op 5000m
- Chrome planting thickness : 100 to 120 micron
- Chrome surface hardness : 850 to 1000 HV.
- Straightness : 0.1 per meter max.
Note :
- Each Metering bar is inspected under magnifying glass table to inspect surface finish.
- Each Metering bar is pack under special made hollow foam tube to protect surface finish.
Complete Manufacturing as per customers requirement like Tie Bar / Guide Bar / Stretch Rod / Piston Rod
Usage

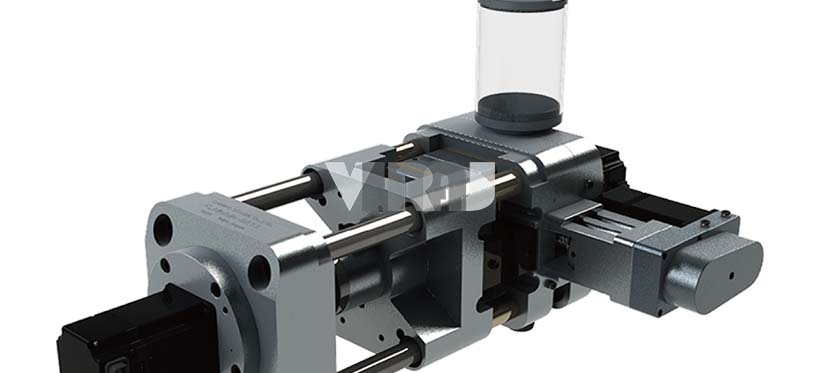

Plastic Blow & Injection moulding m/c
Rubber moulding m/c
Thermocole processing m/c
Remark :
- Material : EN-8 / C-45/ EN-19 / EN-24 or as per requirement.
- Standard Size : 8mm to 150mm
- Standard Length : Up to 6000mm
- Chrome plating thickness :25 to 30 micron
- Run out: 0.01 /0.02mm
- Straightness: 0.1 per meter max.
- Surface finish : better then RA 0.2
- Chrome Surface Hardness : 850 to 1000 HV.
